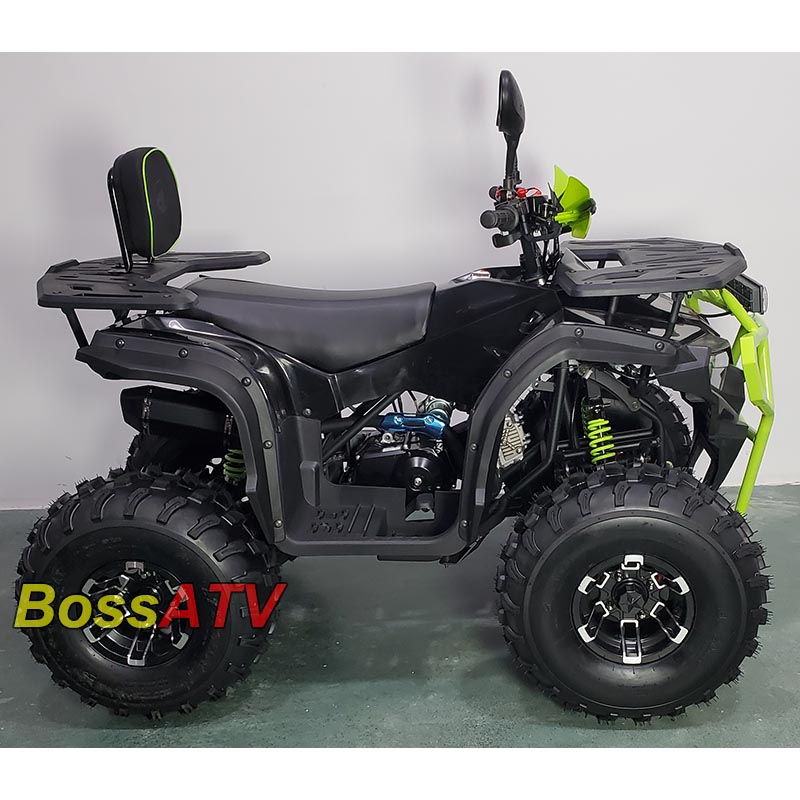

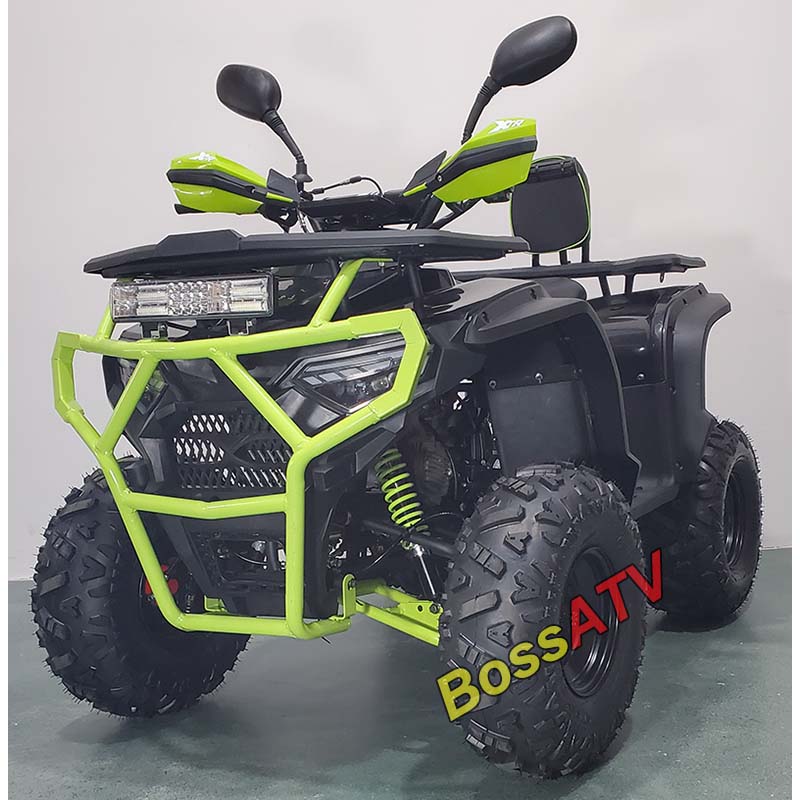

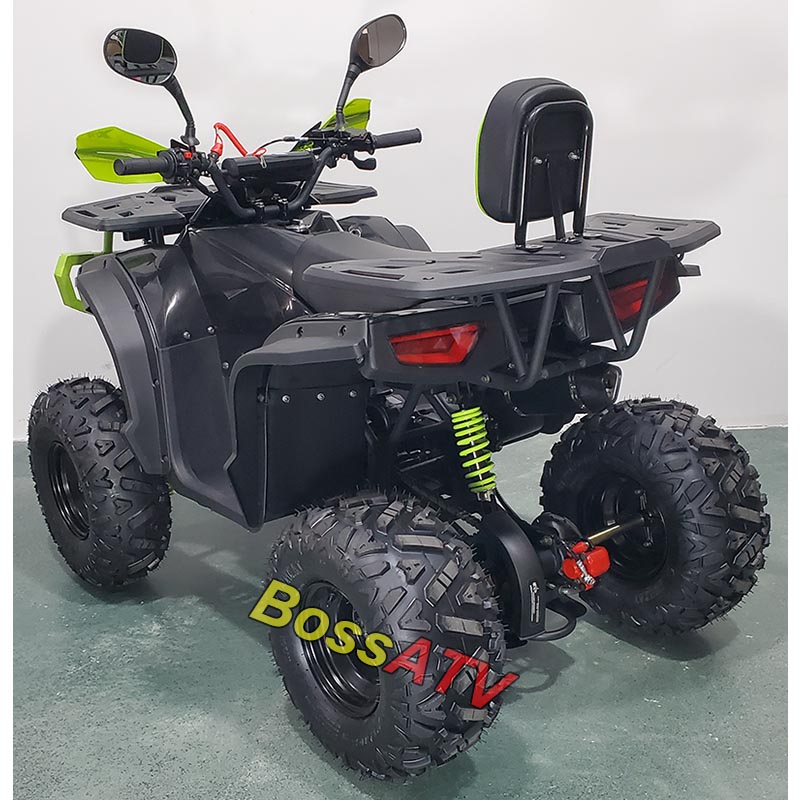

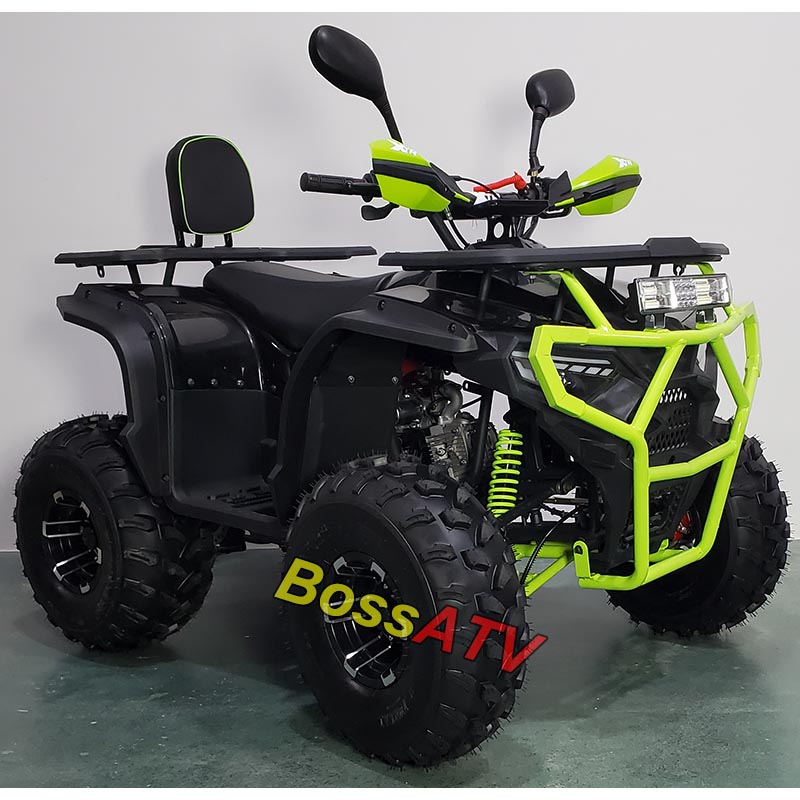

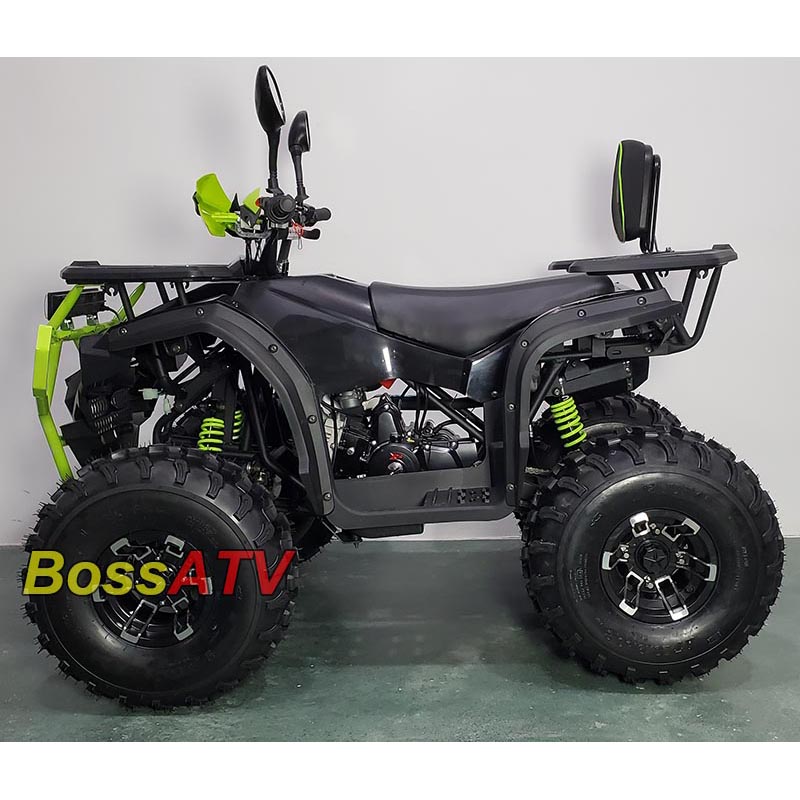

125cc New ATV

Engine Type

Air-cooled, 4-stroke, single cylinder

Engine Displacement

110cc, real 125cc, real 150cc

Ignition

CDI

Starter

Electric start

Drive   Train

Clutch

Fully-automatic with reverse or semi-automatic with   reverse

Gearbox

1 forward gear + 1 reverse gear, 3 forward gears + 1   reverse gear

Final Drive

Chain

Dimensions   and Weight

Length x Width x Height

1,570 x 1,010 x 1,060mm handgrip height, mirror height   is 1,330mm

Wheelbase

990mm

Front Tread

840mm

Rear Tread

690mm

Ground Clearance

110mm

Seat Height

760mm

Fuel Capacity

3.0L

Wheels,   Suspension and Brakes

Wheels Front

Steel rim

Wheels Rear

Steel rim

Tyres Front

19x7-8

Tyres Rear

18x9.5-8

Suspension Front

Independent double-wishbone

Suspension Rear

Swing arm with single shock

Brakes Front

Dual drum brakes or dual hydraulic disc brakes

Brakes Rear

Hydraulic disc brake, hand operated or foot operated

Packing

Carton Size

143x83x66cm

G.W./N.W.

131/115kg

Container Load

88pcs/40HQ
