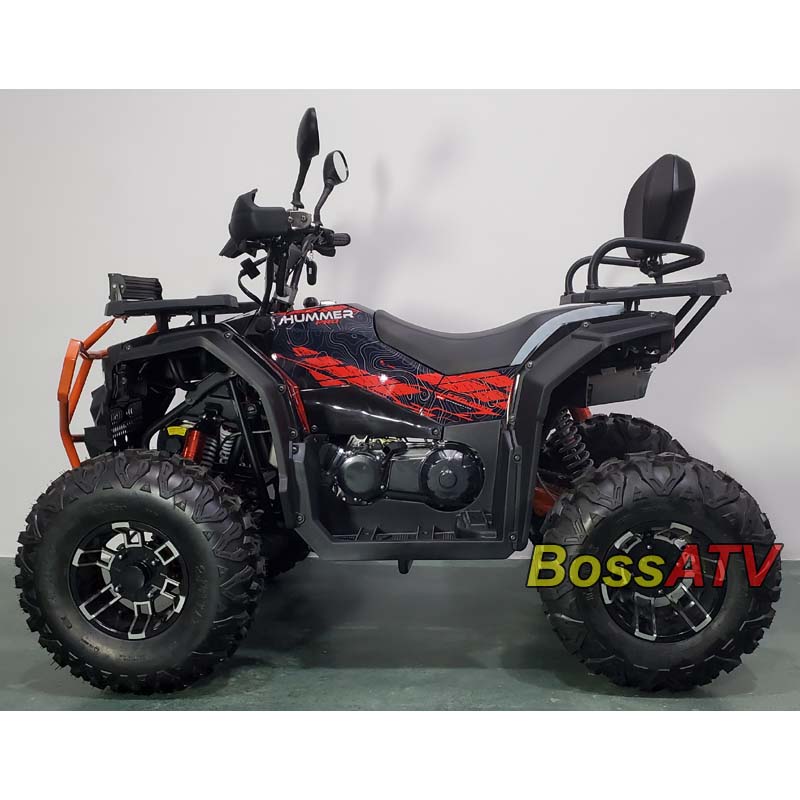

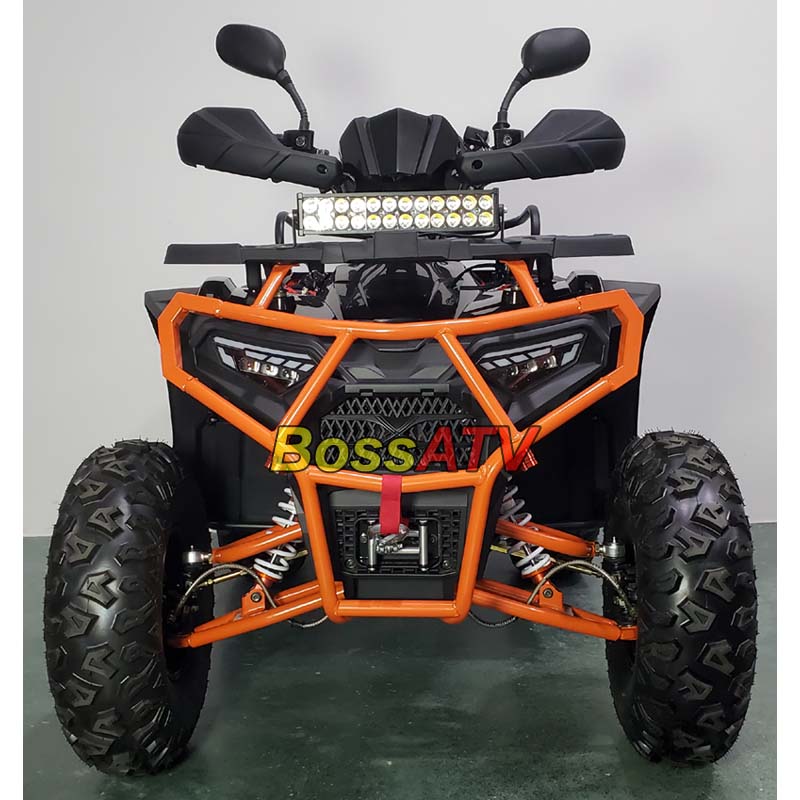

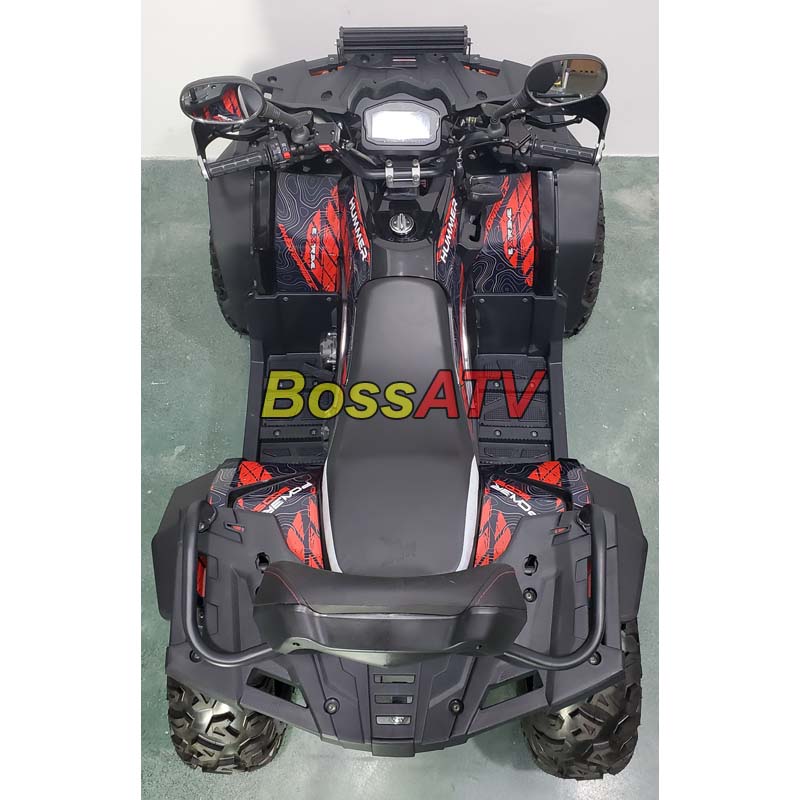

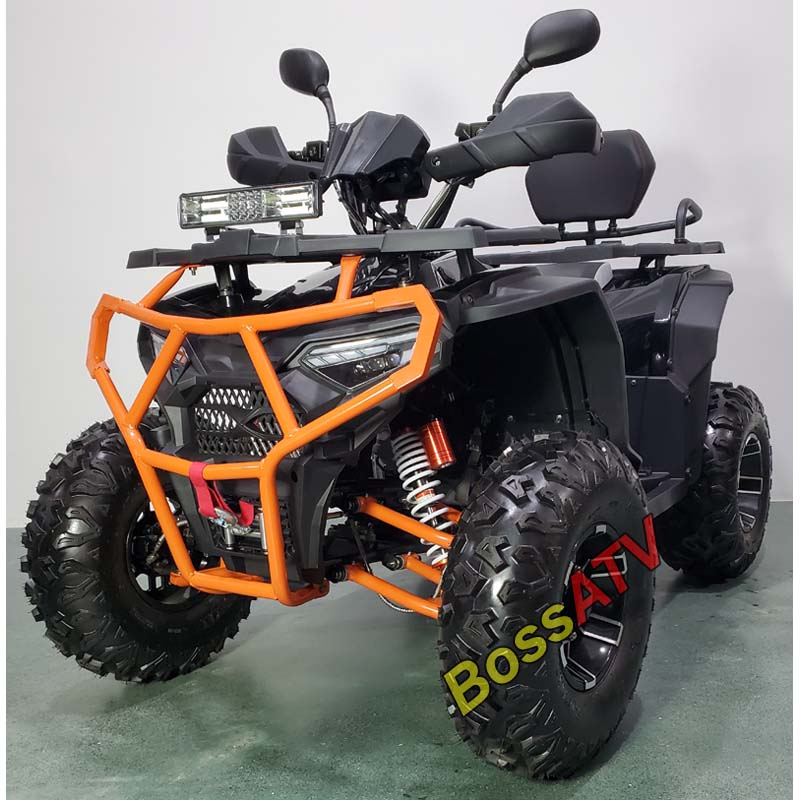

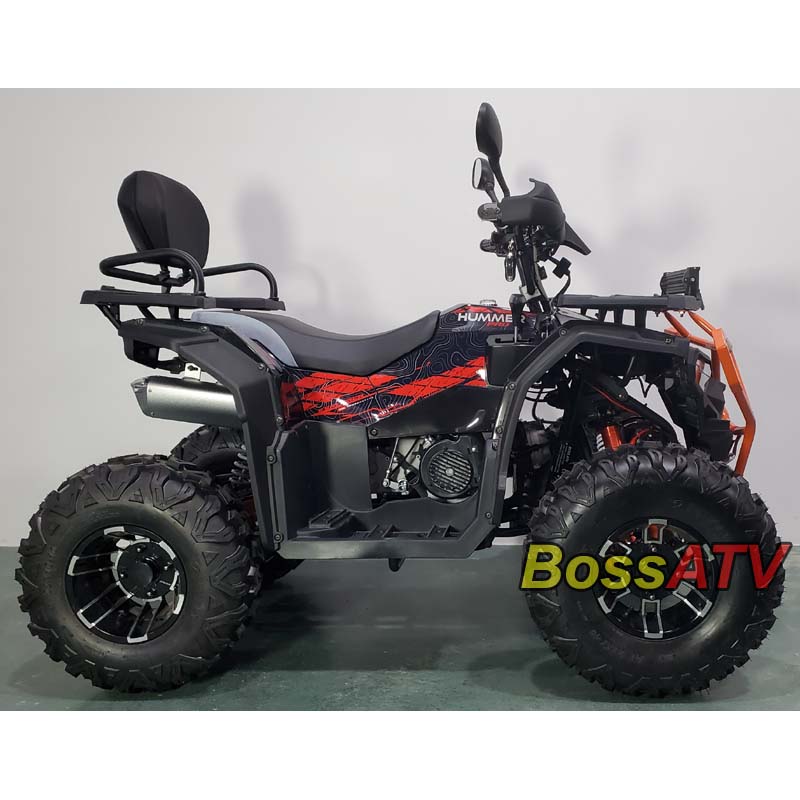

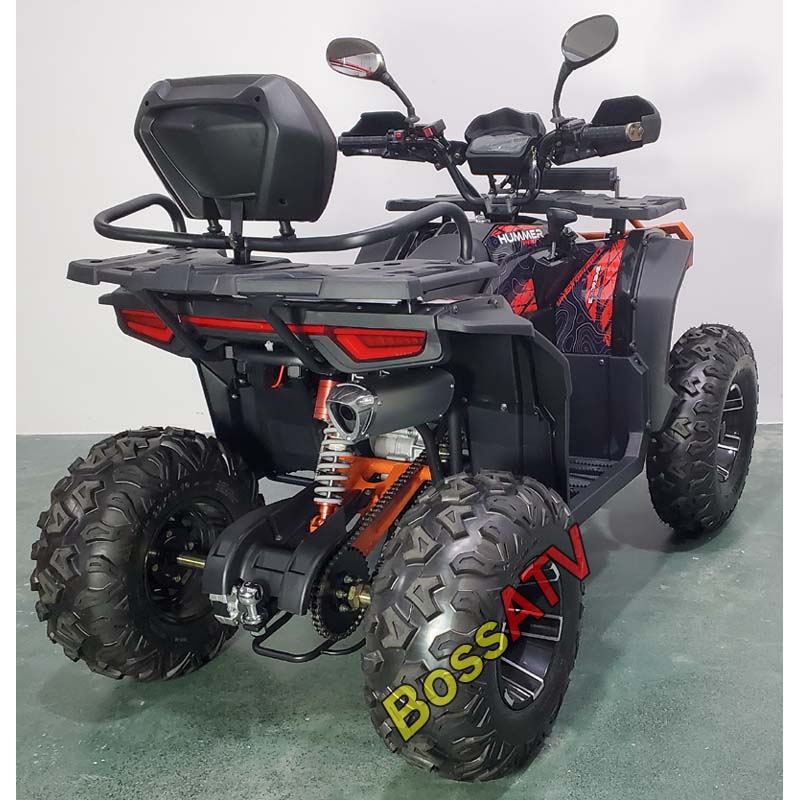

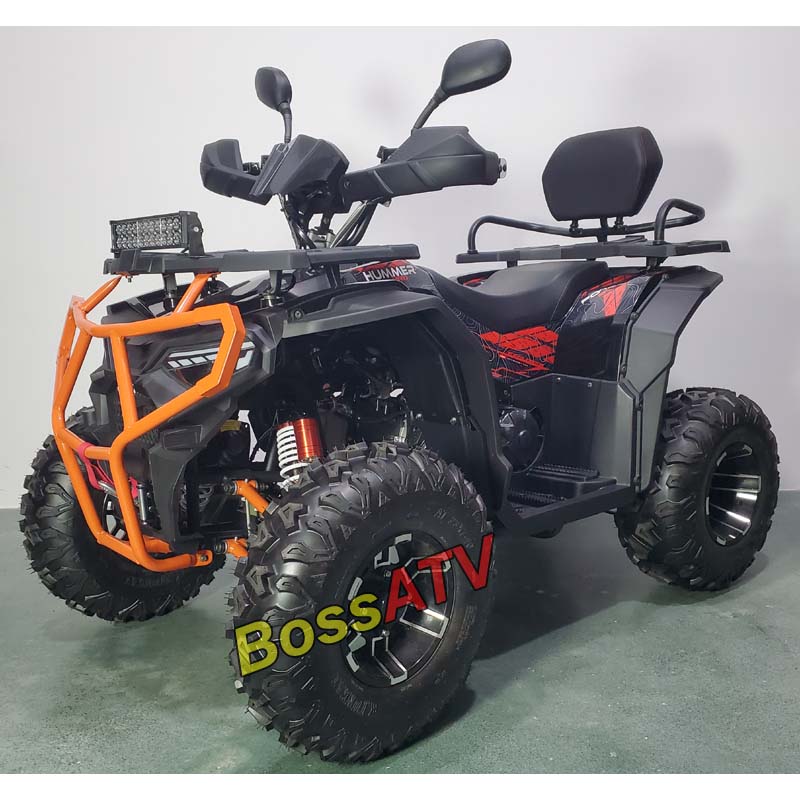

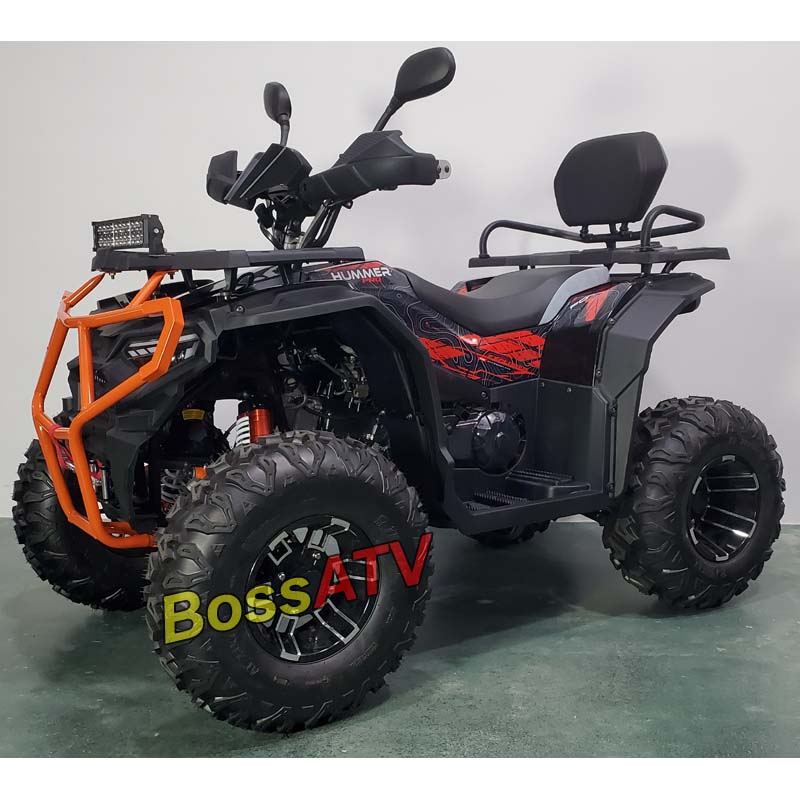

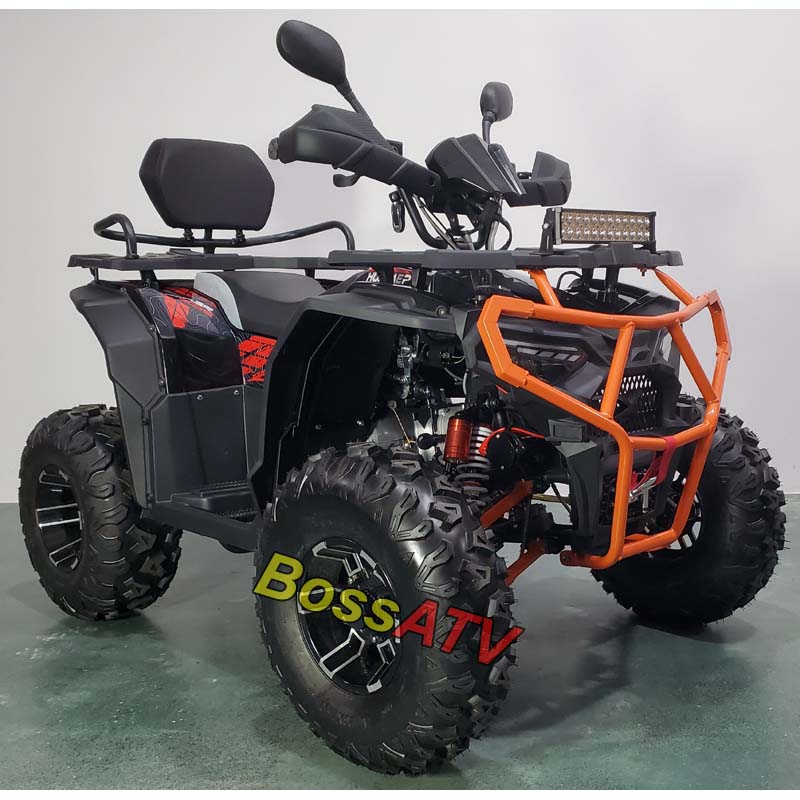

150cc automatic ATV

Engine Type

Single cylinder, air-cooled,   4-stroke, fully automatic with reverse

Engine   Displacement

150cc air cooled or   200cc oil-cooled

Bore &   Stroke

57.40x57.80mm[200cc:   62.5x57.8mm]

Compression   Ratio

9.2:1[200cc: 10:1]

Carburetor

Carburetor

Max. Power   Output

6.2kW/(7000r/min)   [200cc: 8.5kW/(7500r/min)]

Max. Torque

8.8N.m/(5500r/min)[200cc:   12.5N.m/(5500r/min)]

Ignition

CDI

Starter

Electric start + kick   start

Drive Train

Clutch

Fully automatic

Gearbox

1 forward, neutral   and 1 reverse gear

Final Drive

Chain

Dimensions and Weight

Length x Width x   Height

1,880 x 1,150 x 1,370mm mirror height

Wheelbase

1,200mm

Front Tread

970mm

Rear Tread

810mm

Seat Height

800mm

Foot Step to Seat

500mm

Fuel Capacity

5.0L, metal tank

Dry Weight

190kg

Max. Load

250kg

Wheels, Suspension and Brakes

Wheels Front

10 inch iron rim

Wheels Rear

10 inch iron rim

Tyres Front

23x7-10

Tyres Rear

22x10-10

Suspension   Front

Independent double-wishbone

Suspension   Rear

Swing arm with single shock

Brakes Front

dual hydraulic disc   brakes(Hand operated)

Brakes Rear

Hydraulic disc   brake(Hand operated or foot operated)

Packing

Carton Size

166X95X85cm

G.W./N.W.

215/190kg

Container Load

42PCS/40HQ
